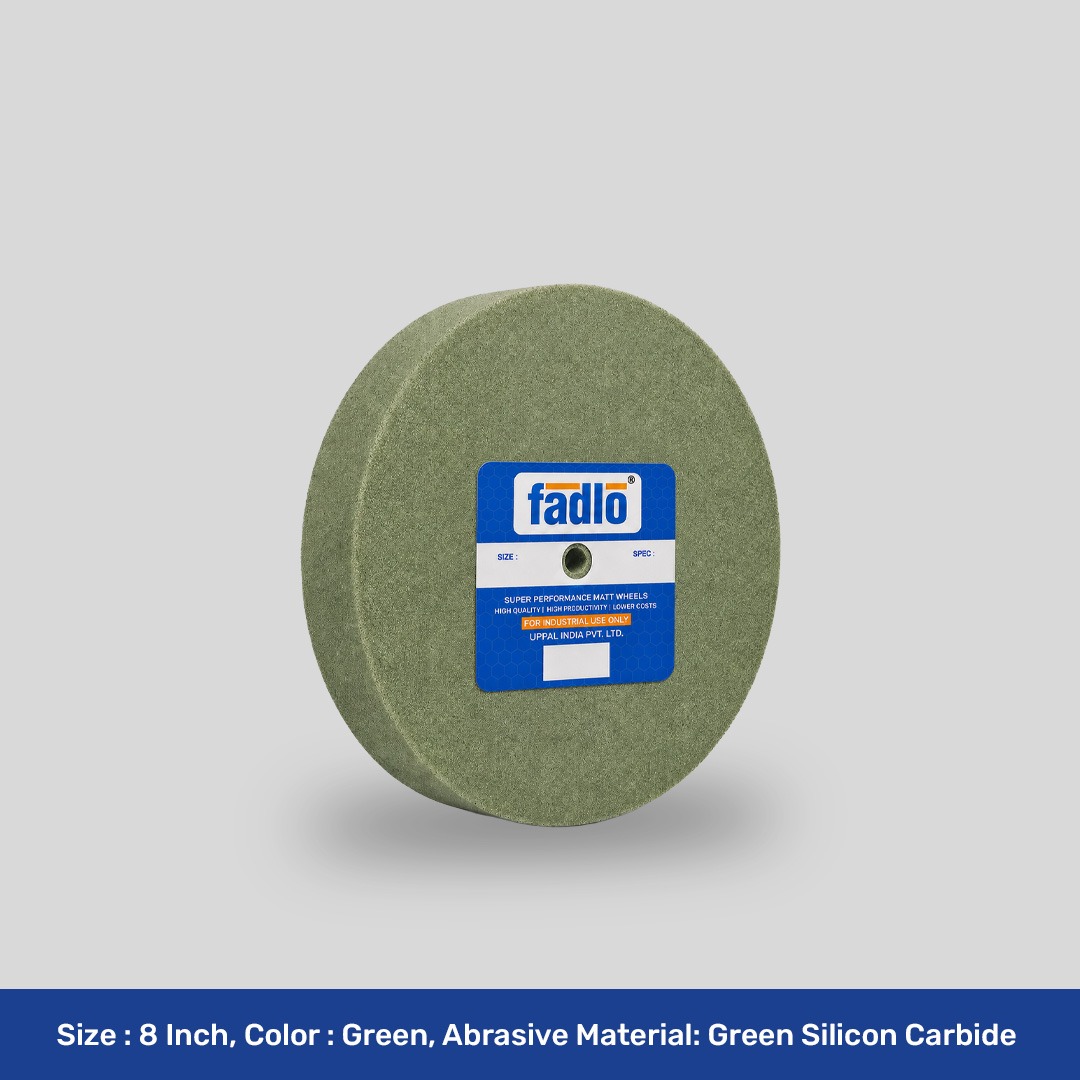

General Purpose Wheels - Q Series
Non - Woven Unitized Wheel
It is applicable to precise and delicate treatment. It can grind smoothly and does not leave black spots caused by high pressure, hence ensuring fewer defects and keeping original work piece weight unchanged. So it is much effective for treating stainless steel, aluminium and titanium alloy, etc. After polishing, the wheel leaves surface to a bright to white, greatly meeting manufacturer’s requirements on product brightness.
Applications:
1. Grinding for casting and forging
2. Surface polishing of stainless products
3. Burr grinding of metal parts
4. Polishing of flasks
5. High end architectural hardware polishing and many more
Products
Manufacturer
Rates
Technical Details
SKU: 350 mm (Diameter) x 50 mm (Thickness) x 16mm (Bore)
Type: Q Series; Color: Green;
Density: Q5
Material Base: Nylon 66 Fibre; Grain Material: Green Silicon Carbide
Standard Weight : 2050 – 2200 gms; Grit Size: #180
Use Case:
A manufacturer looking forward to create fine looking bright colored finish to an aluminium flask manufacturing unit.
Fadlo General Purpose Q series wheels are used explicitly to create a fine look and ulra premium finish to this case.
One can understand this with the help of this table mentioned below.
*Recommended RPM Table
| Diameter of Wheels | ||||||
| APPLICATIONS | 4" | 6" | 8" | 10" | 12" | 14" |
| Decorative Finishing | 2800 | 1800 | 1400 | 1100 | 900 | 800 |
| Cleaning | 3600 | 2400 | 1800 | 1500 | 1300 | 1200 |
| Polishing | 5400 | 3600 | 2700 | 2400 | 2100 | 2000 |
| Deburring | 6400 | 4200 | 3200 | 2800 | 2500 | 2400 |
Recommended RPM for Polishing: 2000-2200 rotations
Recommended RPM for Deburring: 2400-3200 rotations
Max RPM Recommended: 6500 rotations
The given table is showing the process flowchart for Fadlo metal polishing wheel which has been tested by the quality team. Majorly polishing is required by any manufacturer in this regard. This table only applies to a certain grade of stainless steel hence the wheel is purely user specific. This wheel is designed to achieve a bright finish to a white finish.
